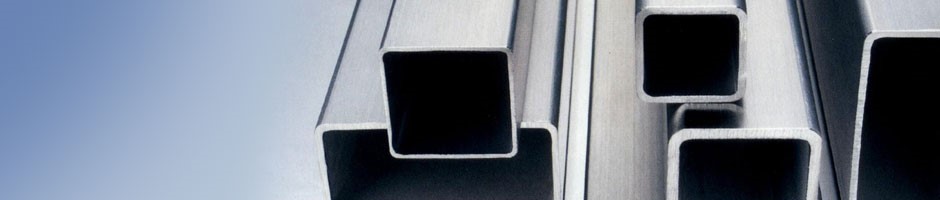

Square Stainless Steel Tubes
SIS TUBES’s Stainless Steel Tubes are manufactured and tested to international Standards and specifications as per ASTM. Our Square Stainless Steel Tubes have very durable and sturdy finish, widely applicable for all types of fabrication projects that are exposed to the elements – chemical, acidic, fresh water, and salt water environments.
Specifications
Square Hollow Section |
Weight(kg/meter) |
|||||
| Wall Thickness | 0.9mm | 1mm | 1.2mm | 1.5mm | 2.0mm | 2.5mm |
| 10×10 | 0.27 | 0.29 | 0.35 | 0.42 | – | – |
| 12.50×12.50 | 0.34 | 0.37 | 0.44 | 0.54 | – | – |
| 15×15 | 0.41 | 0.45 | 0.54 | 0.66 | – | – |
| 20×20 | 0.55 | 0.61 | 0.73 | 0.9 | 1.18 | 1.44 |
| 25×25 | 0.69 | 0.77 | 0.92 | 1.13 | 1.49 | 1.84 |
| 30×30 | 0.84 | 0.93 | 1.11 | 1.37 | 1.81 | 2.23 |
| 35×35 | 0.98 | 1.09 | 1.30 | 1.62 | 2.13 | 2.63 |
| 40×40 | 1.12 | 1.25 | 1.49 | 1.85 | 2.45 | 3.03 |
| 50×50 | 1.41 | 1.56 | 1.87 | 2.33 | 3.09 | 3.83 |
| 60×60 | 1.69 | 1.88 | 2.25 | 2.80 | 3.73 | 4.63 |
